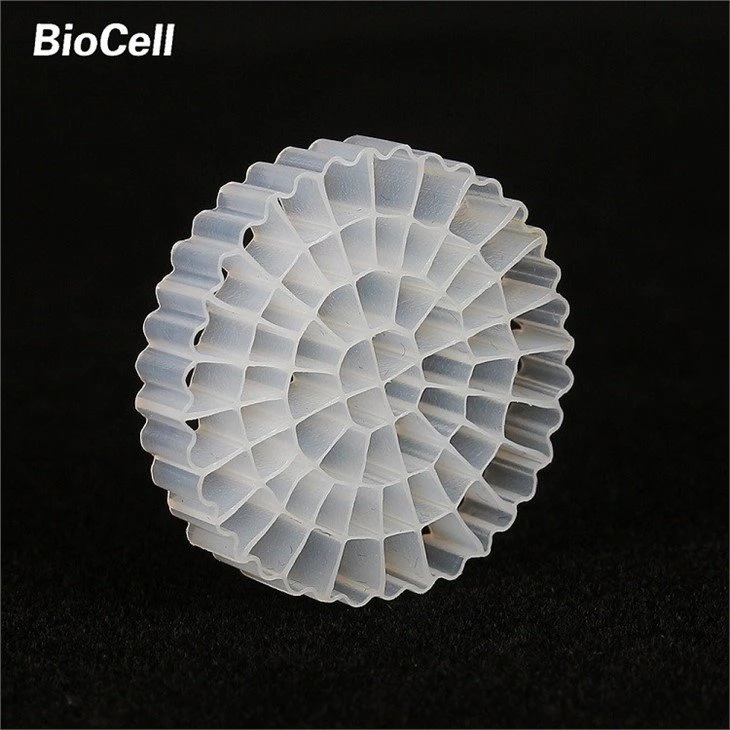

MBBR Media Moving Bed Biofilm Reactor Filter
In aerobic aeration, the media is fully agitated and mixed with water; meanwhile the air is segmented into small bubbles, which increases the contact area between biological membrane and oxygen.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Description
MBBR media moving bed biofilm reactor filter is a system that is considered as a biofilm process apart from rotating biological contactor (RBC), trickling filter, or biological aerated filter (BAF). Generally, MBBR media for wastewater treatment requires less space than activated sludge systems due to its higher biomass concentration.
MBBR Process
In aerobic aeration, the media is fully agitated and mixed with water; meanwhile the air is segmented into small bubbles, which increases the contact area between biological membrane and oxygen. Under anaerobic conditions, water flow and media be fully agitated by agitator, in order to let the biofilm and the pollutants are fully exposed, and achieve the purpose of biological decomposition.
Technical Parameters
| Product Name | MBBR Media Moving Bed Biofilm Reactor Filter |
Model | B7-25-4 |
Dimensions (D x H) | 25x4 mm |
Bulk Density | 120 kg/m3 |
Total Surface Area | >1450 m2/m3 |
Protected Surface Area | >1200 m2/m3 |
Material | 100%HDPE |
Density | 0.95-0.97g/cm3 |
Color | White |
Main Features
♦ The geometry based on hydrodynamics enhances the surface adhesion. It is a polymer material with high shock resistance.
♦ Large specific surface area and many adhesive organisms. It not only provides growth space for heterotrophic bacteria, but also creates conditions for the growth of autotrophic bacteria. At the same time, it is beneficial to biological nitrogen and phosphorus removal.
♦ No need for brackets, easy to fluidize and save energy. Appropriate specific gravity keeps the filler in a suspended fluidized state, reducing energy consumption and increasing the impact and cutting of air bubbles. Under the same conditions, the aeration rate can be reduced by more than 10%.
Applications
