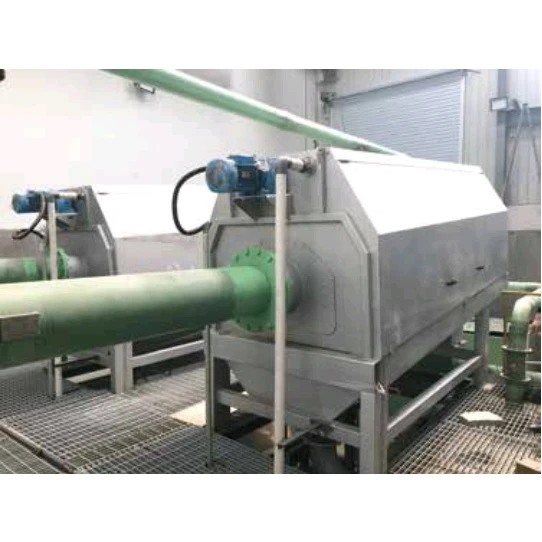

Internally Fed Rotary Drum Screen
High-Efficiency Internal Feed Drum Screen for Municipal & Industrial Wastewater Pretreatment
The GTS Series Internally Fed Rotary Drum Screen is a highly efficient mechanical screening system designed to remove suspended solids, fibers, plastics, organic debris, and other coarse particles from municipal and industrial wastewater. Featuring an internally fed rotary drum design, the system ensures uniform water distribution, continuous screening, and automatic cleaning, significantly reducing downstream equipment wear while improving the overall efficiency of wastewater treatment plants.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
GTS Series Internally Fed Rotary Drum Screen Manufacturer - Efficient Solid-Liquid Separation for Reliable Wastewater Pretreatment
The GTS Series Internally Fed Rotary Drum Screen is a highly efficient mechanical screening system designed to remove suspended solids, fibers, plastics, organic debris, and other coarse particles from municipal and industrial wastewater. Featuring an internally fed rotary drum design, the system ensures uniform water distribution, continuous screening, and automatic cleaning, significantly reducing downstream equipment wear while improving the overall efficiency of wastewater treatment plants.
Designed for continuous operation, the GTS series rotating drum screen combines high screening efficiency, low energy consumption, compact footprint, and minimal maintenance, making it an ideal pretreatment solution for new wastewater treatment facilities and existing plant upgrades.
Manufactured with high-quality SS304 or SS316 stainless steel, the equipment offers excellent corrosion resistance and long service life in demanding environments. Whether your project involves municipal sewage, food processing wastewater, textile effluent, paper mill wastewater, slaughterhouse wastewater, or industrial process water, BioCell provides customized rotary drum screening solutions tailored to your flow rate, screening aperture, and installation requirements.
What Is A GTS Series Internally Fed Rotary Drum Screen?
The GTS series internally fed rotary drum screen is an automatic mechanical screening device used as the first-stage pretreatment equipment in wastewater treatment systems. Wastewater enters the interior of the rotating drum, where solids larger than the screen openings are retained on the inner surface while clean water passes through the perforated or wedge wire screen.
As the drum rotates continuously, captured solids are transported toward the discharge end. An integrated spray washing system cleans the screen surface to prevent clogging, ensuring stable performance and uninterrupted operation.
Compared with conventional bar screens, internally fed rotary drum screens provide:
● Higher screening efficiency
● Better removal of fine suspended solids
● Lower maintenance requirements
● Continuous automatic operation
● Reduced odor generation
● Improved downstream treatment performance
How Does an Internally Fed Rotary Drum Screen Work?
The GTS Series Rotary Drum Screen operates through a simple yet highly efficient continuous screening process.
Step 1 - Wastewater Feeding: Wastewater enters the inlet chamber and flows into the interior of the rotating drum.
Step 2 - Mechanical Screening: Water passes outward through the screen openings while solids larger than the aperture remain inside the drum.
Step 3 - Solid Conveying: The rotating drum transports retained solids toward the discharge end.
Step 4 - Automatic Washing: A high-pressure spray system continuously cleans the screen surface, preventing clogging.
Step 5 - Solid Discharge: Screenings are discharged automatically for further dewatering or disposal.
Step 6 - Clean Water Outlet: Filtered wastewater flows to the next treatment process.
Key Features & Benefits
High Screening Efficiency
The internally fed design maximizes the effective screening area, allowing continuous separation of suspended solids while maintaining stable hydraulic performance.
Continuous Automatic Operation
The rotary drum rotates automatically, eliminating manual cleaning and reducing labor costs.
Excellent Self-Cleaning Performance
Integrated spray nozzles continuously clean the screen surface, minimizing clogging and maintaining optimal screening efficiency.
Compact Structure
The equipment combines screening, conveying, washing, and discharge into one compact unit, saving installation space.
Low Energy Consumption
Optimized drive systems reduce power consumption while maintaining high processing capacity.
Corrosion Resistance
Constructed from SS304 or optional SS316 stainless steel for long-term operation in corrosive wastewater environments.
Easy Maintenance
Modular components allow quick inspection and replacement, reducing downtime.
Long Service Life
Precision manufacturing and premium materials ensure reliable operation for many years.
Technical Specifications
| Model | Reference Flow Rate (m³/h) | Gap (mm) | Drum Diameter (mm) | Drum Length (mm) | Power (kW) |
| GTS612 | 18~32 | 1~5 | φ600 | 1200 | 1.5 |
| GTS818 | 54-108 | 1~5 | φ880 | 1800 | 1.5 |
| GTS1225 | 180-486 | 1~5 | φ1200 | 2500 | 3.0 |
| GTS1530 | 300~1044 | 1~5 | φ1500 | 3000 | 7.5 |
Note: Customized specifications are available upon request.
Typical Applications
The GTS Series Internally Fed Rotary Drum Screen is widely used in a variety of wastewater treatment systems.
| Municipal Wastewater Treatment | Food & Beverage Industry | Paper & Pulp Industry | Textile Industry |
|
● Sewage treatment plants ● Pump stations ● Combined sewer systems
|
● Meat processing ● Dairy factories ● Breweries ● Beverage production ● Fruit & vegetable processing |
● Fiber recovery ● Paper wastewater pretreatment
|
● Dyeing wastewater ● Printing wastewater ● Fabric processing plants
|
|
Chemical Industry |
Aquaculture | Slaughterhouse | Landfill Leachate |
|
● Chemical manufacturing ● Pharmaceutical wastewater
|
● Fish farms ● Recirculating aquaculture systems (RAS) |
● Animal processing wastewater
|
● Leachate pretreatment systems
|
Optional Configurations
BioCell provides customized configurations to meet different project requirements. Available options include:
● SS316 stainless steel construction
● Different screen apertures
● Wedge wire screen
● Perforated screen
● Variable frequency drive (VFD)
● Integrated screw conveyor
● Integrated screenings compactor
● Explosion-proof motor
● Automatic control cabinet
● Customized inlet and outlet connections
Why Choose BioCell?
Professional Wastewater Equipment Manufacturer
BioCell specializes in mechanical pretreatment equipment for municipal and industrial wastewater treatment applications. Our strengths include:
● Advanced manufacturing facilities
● Experienced engineering team
● Strict quality control
● Customized engineering solutions
● Fast global delivery
● OEM & ODM support
● Responsive technical service
● Complete after-sales support
We are committed to helping customers improve wastewater treatment efficiency while reducing operating costs.
Quality Assurance
Every GTS Series Rotary Drum Screen undergoes rigorous inspection before shipment. Quality control includes:
● Material verification
● Welding inspection
● Dimensional inspection
● Dynamic operation testing
● Noise testing
● Water leakage testing
● Electrical inspection
● Final factory acceptance test (FAT)
Frequently Asked Questions
Q1: What is an internally fed rotary drum screen?
A: An internally fed rotary drum screen is a mechanical screening device that removes suspended solids from wastewater by allowing water to flow from inside the rotating drum outward through a perforated or wedge wire screen.
Q2: What industries use rotary drum screens?
A: They are commonly used in municipal wastewater treatment, food processing, paper mills, textile plants, breweries, slaughterhouses, chemical factories, aquaculture facilities, and landfill leachate treatment.
Q3: What screen opening sizes are available?
A: BioCell offers screen apertures ranging from 0.25 mm to 10 mm, depending on the application and required solids removal efficiency.
Q4: What materials are available?
A: Standard construction is SS304 stainless steel, with SS316 stainless steel available for highly corrosive environments.
Q5: Can the equipment be customized?
A: Yes. We provide customized dimensions, flow capacities, screen types, motor brands, electrical systems, and installation configurations to match your project requirements.
Q6: How is the screen cleaned?
A: The system uses an automatic high-pressure spray washing system that continuously cleans the drum surface during operation, minimizing clogging and reducing maintenance.
Q7: What maintenance is required?
A: Routine maintenance includes periodic inspection of the drive system, spray nozzles, bearings, seals, and electrical components. The modular design allows for easy servicing.
Q8: Can BioCell provide complete pretreatment solutions?
A: Yes. In addition to rotary drum screens, BioCell supplies integrated wastewater pretreatment equipment including MBBR systems, coarse bubble diffusers, MBBR bio media, media retention screens, sludge screw presses, and screw conveyors, enabling complete customized pretreatment solutions.
Request A Free Quote Today
Looking for a reliable GTS series Internally Fed Rotary Drum Screen manufacturer for your wastewater treatment project?
BioCell provides custom-engineered rotary drum screening equipment with high screening efficiency, robust stainless-steel construction, and dependable technical support for municipal and industrial applications worldwide.
Contact our engineering team today to receive:
● Customized equipment recommendations
● Technical consultation
● Competitive pricing
● CAD drawings
● Product catalogs
● Fast quotation within 24 hours
