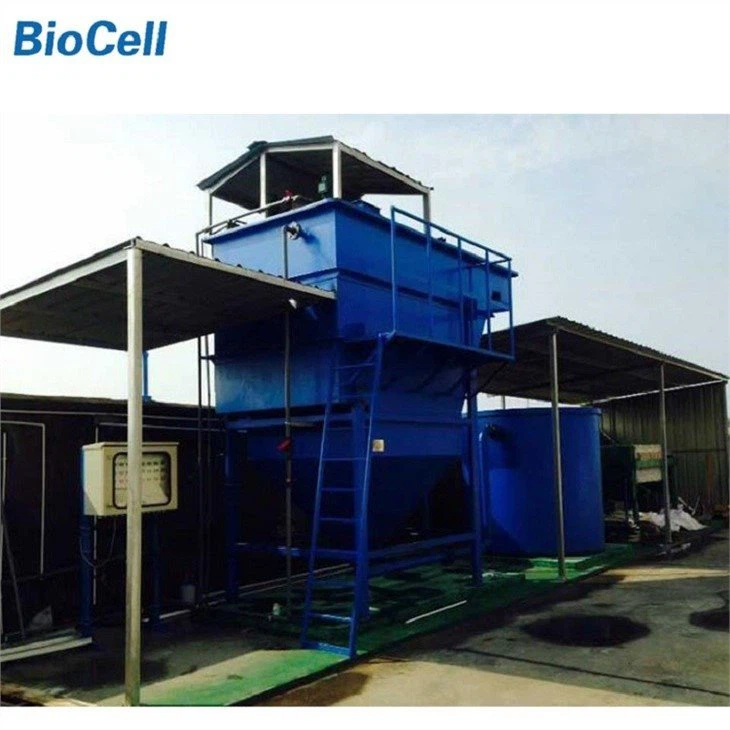

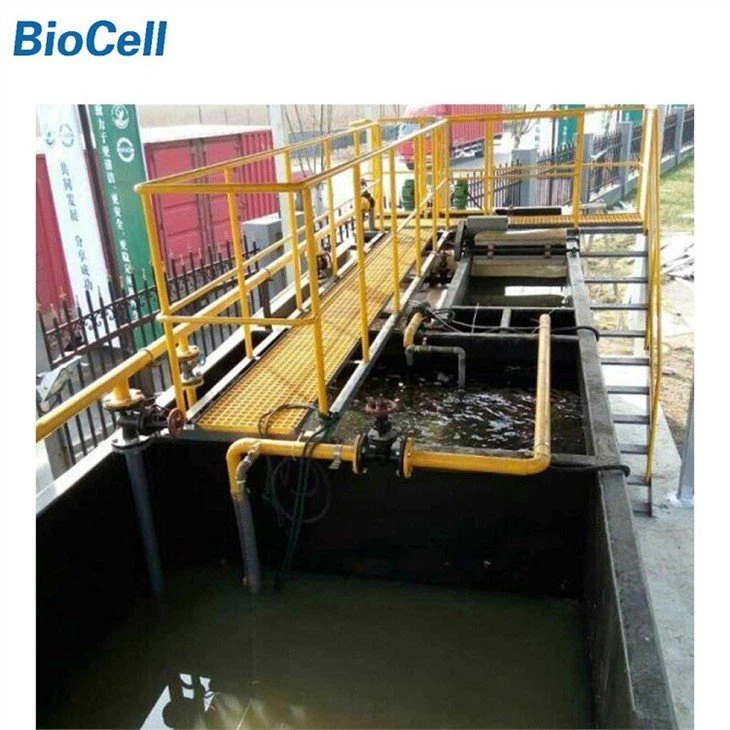

Containerized MBBR Sewage Treatment Plant
The growing pollution of our environment is a problem concerning everyone of us. Especially the pollution of lakes and rivers has increased to alarming proportions over the last years.
* Easy to transport, move, and expand.
* Quick start-up - fully automatic and mess free
* No additional shelters needed.
* Any capacity, any effluent requirements.
* No odor–low power requirements.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Description
The growing pollution of our environment is a problem concerning everyone of us. Especially the pollution of lakes and rivers has increased to alarming proportions over the last years.
The containerized MBBR sewage treatment plant be designed and manufactured, the advantages as below:
* Easy to transport, move, and expand.
* Quick start-up - fully automatic and mess free
* No additional shelters needed.
* Any capacity, any effluent requirements.
* No odor–low power requirements.
Challenge
Incoming wastewater is the livestock processing wastewater. This treatment is designed toremove Biological Oxygen Demand (BOD),Total Suspended Solids(TSS), ammonia and from the wastewater.
The Inlet and outlet design values of the containerized MBBR sewage treatment plant as follows:
| Parameter | Unit | Inlet values | Outlet values |
COD | mg/L | 3,500 | 60 |
BOD5 | mg/L | 2,000 | 20 |
NH4-N | mg/l | 100 | 10 |
OIL | mg/l | 15 | 10 |
Solution
This containerized MBBR sewage treatment plant consists of three system: DAF, MBBR and Clarifier.
For the first stage, the grid be used to remove the larger impurities. The second DAF (Dissolved Air Flotation) treatment stage could remove the relative density which is close to that of water. The third or biological treatment stage is designed to substantially degrade the wastes in the sewage water.
Flow Chart of the Process
Results
The effluent met the requirements of discharge standard.
