Small Sewage Treatment Plant
Small sewage treatment plants are pre-manufactured treatment facilities used to treat wastewater in small communities or on individual properties.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Description
Small sewage treatment plants are pre-manufactured treatment facilities used to treat wastewater in small communities or on individual properties.

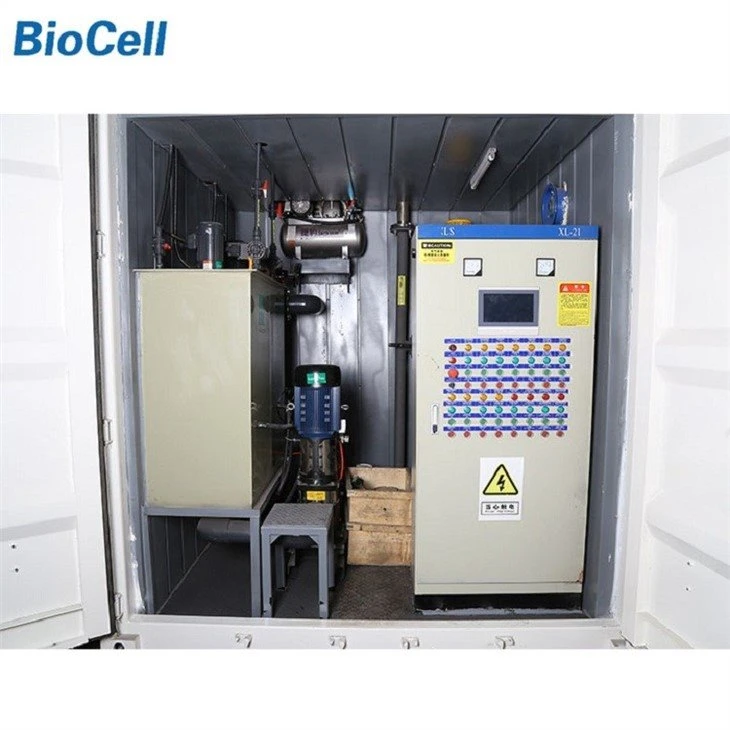

BioCell small sewage treatment plant is developed to meet the demands of smaller or isolated communities for the complete purification of domestic sewage to a degree allowing discharge to local water courses, irrigation and reuse.
Small sewage treatment plants can be installed in-ground or above. These plants are compact, very reliable and simple to operate and maintain.
Working Principle
When waste enters a stream, it becomes food for bacteria present in the water. As long as there is sufficient oxygen in the stream, the bacteria consumes all organic material over time. BioCell small sewage treatment plants use the same process to break down domestic wastewater, only it does it faster and more efficiently using sewage treatment plant technologies.
BioCell's self-contained packaged wastewater treatment plants take in wastewater and process it through an extended aeration and oxidation process that purifies the sewage by the destruction of organic compounds using naturally occurring bacteria. Continuous mixing with air encourages the biological organisms to consume and break down the organic materials. The result is a clear and odor-free effluent.
Typical Applications
* For the treatment of sewage from small towns or communities
* For the treatment of sewage from villages
* For the treatment of sewage from mine sites or accommodation camps
* For the treatment of sewage from resorts and holiday camps
* For the treatment of sewage from remote communities
Technical Specifications
NO. | Equipment | Specifications | Unit | BC-MP-1 | BC-MP-2 | BC-MP-4 |
1 | Flow | / | m3/d | 25 | 50 | 100 |
2 | Tank Size | Length | m | 6 | 12 | 12 |
Width | m | 2.4 | 2.4 | 3 | ||
Height | m | 2.4 | 2.4 | 3 | ||
3 | Bio Media | Proprietary | m3 | 3.3 | 6.6 | 13.2 |
4 | Settling Media | Tube-dek | m2 | 0.64 | 1 | 1.44 |
5 | Rotary Blower | Capacity | m3/h | 66 | 114 | 200 |
Pressure | m | 3 | 3 | 3.5 | ||
Motor HP | kw | 1.5 | 2.2 | 5.5 | ||
6 | Transfer Pump | Submersible | m3/h | 1 | 2 | 4 |
Head | m | 6 | 6 | 6 | ||
Motor HP | kw | 0.37 | 0.37 | 0.55 | ||
7 | Tertiary Disk Filters | Drive Motor | kw | 0.37 | 0.37 | 0.37 |
Pump Moter | kw | 0.37 | 0.37 | 0.37 | ||
8 | PAC | Drive Motor | kw | 0.37 | 0.37 | 0.37 |
Pump Moter | kw | 0.25 | 0.25 | 0.25 | ||
9 | PAM | Drive Motor | kw | 0.37 | 0.37 | 0.37 |
Pump Moter | kw | 0.25 | 0.25 | 0.25 | ||
10 | Shipping WT. | / | kg | 5500 | 10500 | 12500 |
11 | Operating WT. | / | kg | 8500 | 17200 | 21000 |
12 | Installed Power | / | / | 3.85 | 4.55 | 8.03 |
