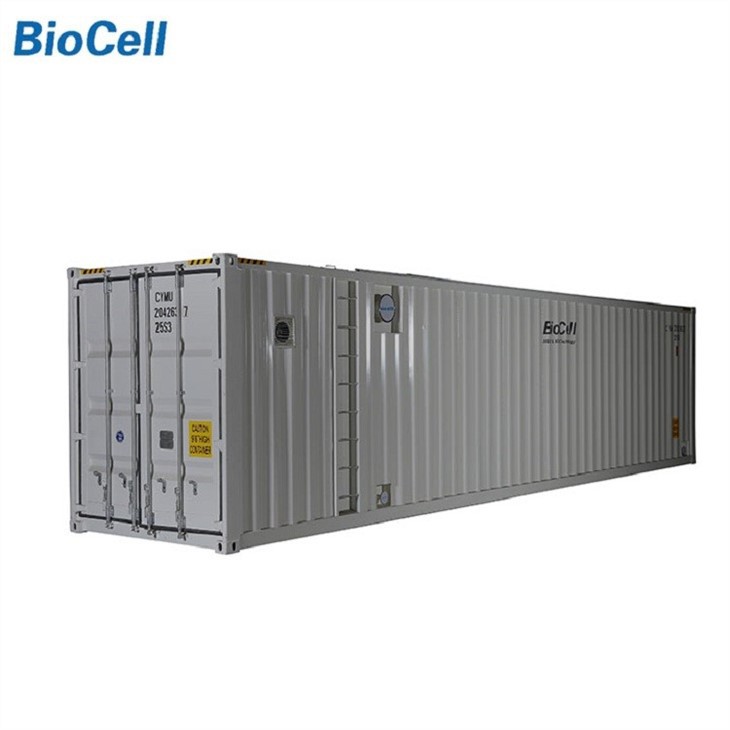

MBBR Package Domestic Sewage Water Treatment Plant

MBBR Package Domestic Sewage Water Treatment Plant

The domestic sewage treatment plant has strong flexibility, low investment and operation cost, and can meet the requirements of different depth treatment.

Send Inquiry Chat Now

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Product Description

Sewage treatment plant MBBR technology is aimed at the MBBR package domestic sewage water treatment plant which can run independently for the village sewage which is far away from the urban sewage pipe network and the area where the local sewage treatment plant is not suitable for construction. The MBBR sewage treatment plant can remove COD, BOD, ammonia nitrogen and other pollutants in sewage with high efficiency and low energy consumption, and the treated effluent can meet the national first-class discharge standard.

The domestic sewage treatment plant has strong flexibility, low investment and operation cost, and can meet the requirements of different depth treatment. The packaged sewage treatment plant is of assembly type, simple device, low energy consumption, and has the characteristics of small turn-key sewage treatment project. The construction and installation of the device is flexible and simple. It can be fully underground or semi-underground. It can operate automatically and realize unmanned management.

1(001)

Technical Characteristics

* Flexible and adjustable according to water quality and effluent standards; Set efficient biochemical treatment and filtration and integration, effluent water quality is good, stable operation;

* Modular design, according to the inlet and outlet of water requirements modular configuration treatment unit

* Automatic control, easy operation;

* Can achieve multi-plant station remote control, unattended;

* Small footprint, low energy consumption;

* Low investment, low operating costs;

* Easy to install and transport.

2(001)

Technical Parameters
These MBBR domestic sewage treatment plants are designed on the following inlet sewage characteristics:

Characteristics	Unit	Value
COD	mg/l	200~500
BOD	mg/l	100~300
NH4-N	mg/l	20~ 40
Suspended Solids	mg/l	100~300
PH	----	Around 7
Oil and Grease	mg/l	Less than 20

The expected treated water characteristics:

Characteristics	Unit	Value
COD	mg/l	60~120
BOD	mg/l	20~45
NH4-N	mg/l	8~15
Suspended Solids	mg/l	20/40
PH	----	Around 7
Oil and Grease	mg/l	10

Specifications Choose

Specifications		Unit	BC-MP-1	BC-MP-2	BC-MP-3	BC-MP-4	BC-MP-5
Flow		m3/d	25	50	75	100	200
Tank Size	Length	m	6	6	12	12	12
	Width	m	2.4	2.4	2.4	2.4	2.4
	Height	m	2.4	2.9	2.9	2.9	2.9
Shipping WT		kg	5500	7500	10500	11500	12500
Operating WT		kg	28000	40000	80000	86000	89000
Installed Power		/	1.5	2.2	2.2	4	5.5
