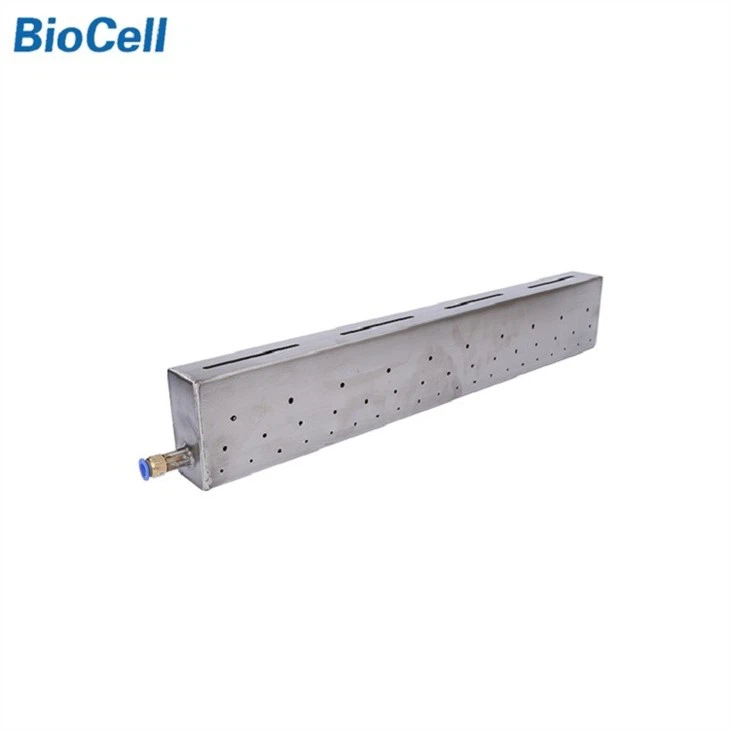

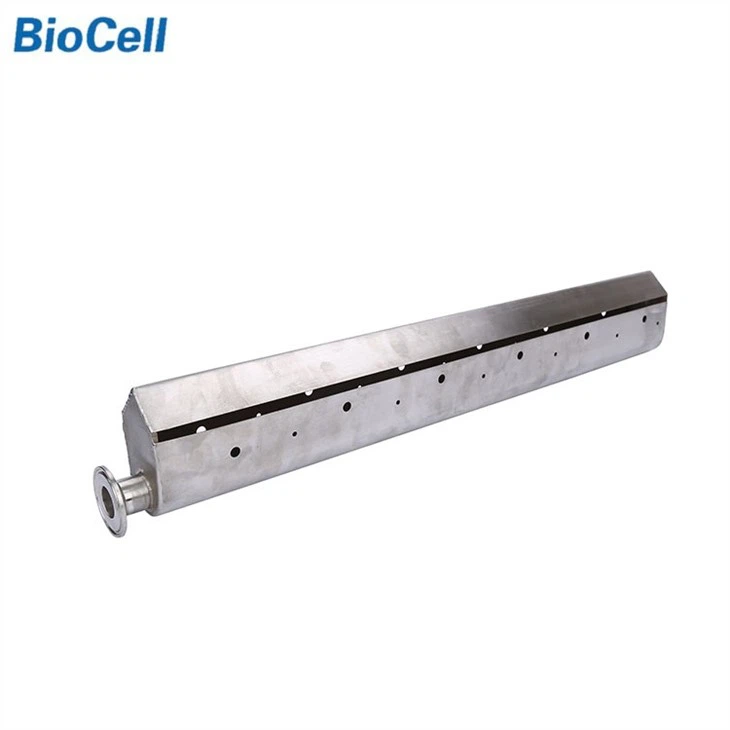

SS316 Coarse Bubble Diffuser
BioCell coarse bubble diffusers are entirely made of 316 stainless steel and can be considered a perfect solution for applications that do not require a remarkable oxygen transfer but rather a mixing action.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Description
BioCell coarse bubble diffusers are entirely made of 316 stainless steel and can be considered a perfect solution for applications that do not require a remarkable oxygen transfer but rather a mixing action.
SS316 coarse bubble diffusers are successfully utilized in sand and oil separation processes; their particular open non-clogging structure and the building materials they consist of ensure resistance to corrosion and long life.
Our coarse bubble diffusers can be arranged as preassembled self-supporting structures, that can be easily transported and installed.
Technical Parameters
Diffuser Type | Design Airflow | Diffuser Length | Net Operating Buoyancy | Dry Weight | ||||
scfm | m3N/h | in | mm | lb | kg | lb | kg | |
BC-300 I | 0-28 | 0-48 | 12 | 300 | 2.12 | 0.96 | 2.2 | 1.0 |
BC-300 II | 0-26 | 0-44 | 12 | 300 | 2.0 | 0.91 | 1.81 | 0.82 |
BC-600 I | 0-51 | 0-87 | 24 | 600 | 4.19 | 1.9 | 4.62 | 2.1 |
BC-600 II | 0-47 | 0-80 | 24 | 600 | 4.0 | 1.82 | 3.26 | 1.64 |
Advantages of SS316 Coarse Bubble Diffuser
* Multi-level air hole design could guarantee the aeration strength evenly and the efficiency of dissolved oxygen.
* The bottom hole design ensure the air hole keep opening, will not be blocked.
* The pre-fabricated elements guarantee quick and easy installation. Installation is possible in all kinds of basins.
* The service life could be reach to 15 years.
