MBBR Bio Carrier

MBBR bio carrier is a moving media system, used in Integrated Fixed-lm Activated Sludge (IFAS) and moving bed biofilm reaction (MBBR) system.

Send Inquiry Chat Now

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Product Description

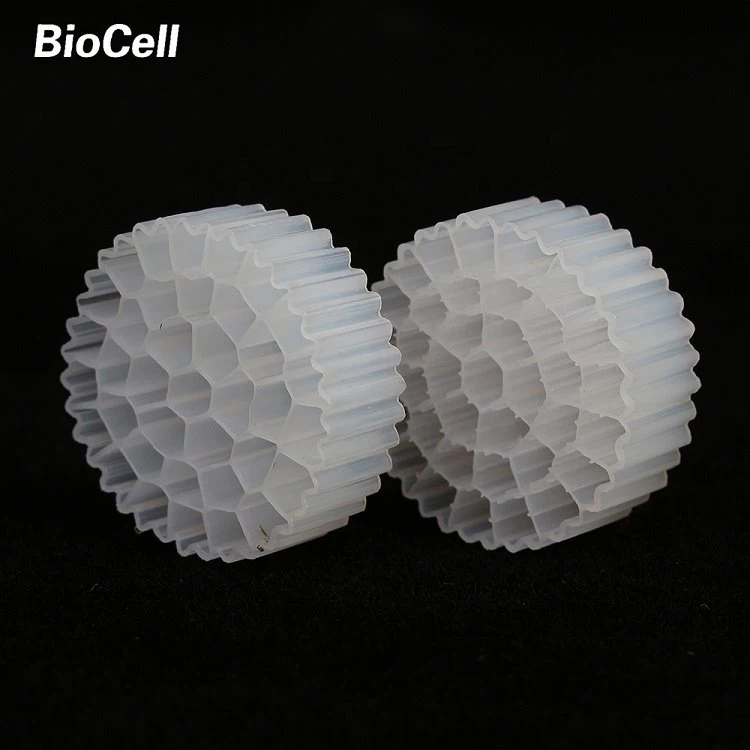

MBBR bio carrier is a moving media system, used in Integrated Fixed-lm Activated Sludge (IFAS) and moving bed biofilm reaction (MBBR) system.

The wastewater goes through bio carrier of MBBR reactor, forming biological membrane on the surface of media gradually. With the action of microbial on the biological membrane, wastewater is purified. MBBR bio carrier can move freely in the reactor with the mixing of the water. For the aerobic reactor, the aeration will make the media move; for the anaerobic reactor, mechanic mixing will make the media move.

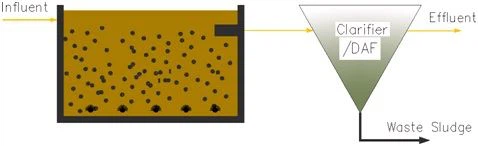

Moving Bed Biofilm Reaction (MBBR)

The main characteristic of moving bed biological reactor (MBBR) configurations is that there is no sludge recycle from a secondary clarifier. MBBR is essentially a simple, once-through process, where all of the biological activity takes place on the bio carriers.

Key Features

* Perfect bio media for DIY in-tank or sump moving bed filters

* 100% premium quality virgin polyethylene.

* The best and most efficient filter media to remove poisonous ammonia and nitrites

* Provides maximum surface area for beneficial bacteria to colonize and grow

* Self Cleaning – never requires cleaning or being replaced

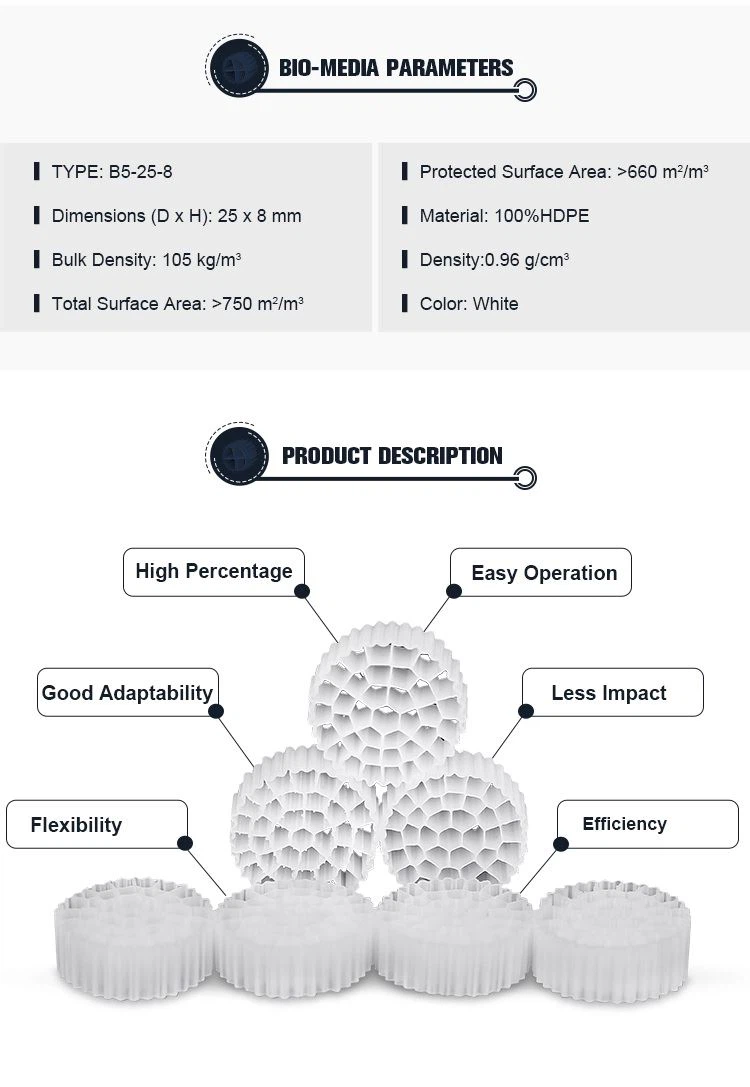

Technical Specifications

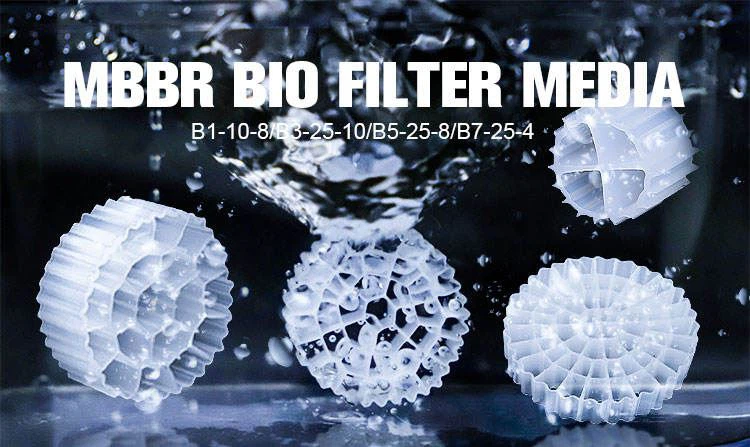

Type	B1-10-8	B3-25-10	B5-25-8	B7-25-4
Holes	4 rooms	19 rooms	37 rooms	64 rooms
Diameter	10mm	25mm	25mm	25mm
Height	8mm	10mm	8mm	4mm
Density	0.96g/cm3	0.96g/cm3	0.96g/cm3	0.95~0.97g/cm3
Total Surface Area	>750m2/m3	>600m2/m3	>750m2/m3	>1450m2/m3
Protected Surface Area	>500m2/m3	>500m2/m3	>660m2/m3	>1200m2/m3
Bulk Density	145kg/m3	95kg/m3	105kg/m3	120kg/m3
Fill Rate	15-50%	15-55%	15-55%	15-55%
Material	100%HDPE	100%HDPE	100%HDPE	100%HDPE

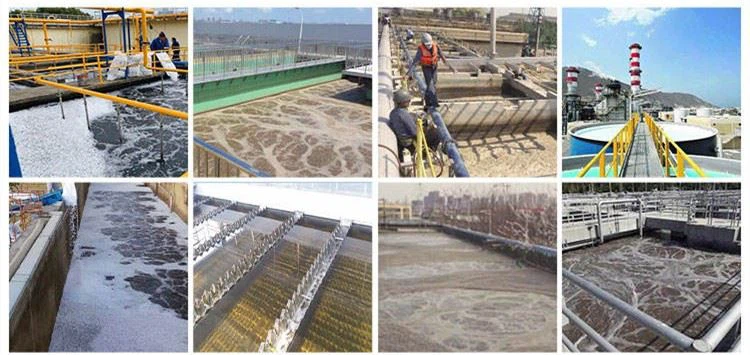

Applications
* Improving standards and quality for the wastewater upgrading and reforming project;
* Bio carrier of wastewater treatment MBBR and biological aerated filter;
* Biochemical treatment of water reuse,
* New projects saving investment and land occupation planning;
* River regulation for nitrogen and phosphorus removal;
* Aquaculture for ammonia nitrogen removal and water purification;
* MBBR bio carrier packing for biological deodorization tower;
* Application industry: municipal, electric power, pharmaceutical, chemical, electroplating, metallurgy, medical treatment, machinery, paper making, printing and dyeing, food processing, aquaculture, etc.
