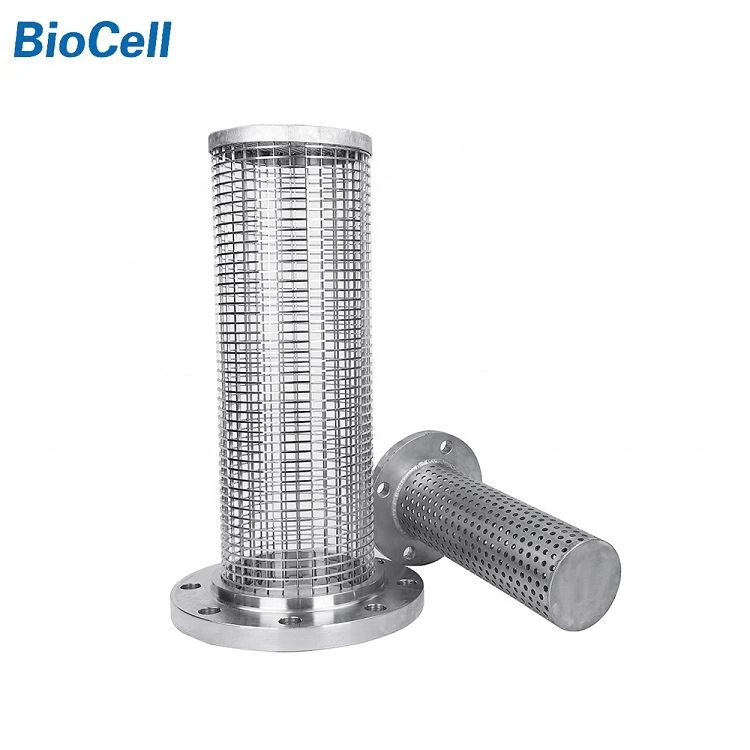

Biofilm Carrier Retention Screen
BioCell biofilm carrier retention screen by wrapping a shaped wire around an internal array of longitudinal rods.The wire and rod, generally made from carbon or stainless steel are joined by resistance welding. When vertical-mounted biofilm carrier retention screens are used, an air-sparge system should be mounted along the bottom edge of the panels to periodically pulse the sieves and prevent any accumulation of waste.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Description
BioCell biofilm carrier retention screen by wrapping a shaped wire around an internal array of longitudinal rods.The wire and rod, generally made from carbon or stainless steel are joined by resistance welding. When vertical-mounted biofilm carrier retention screens are used, an air-sparge system should be mounted along the bottom edge of the panels to periodically pulse the sieves and prevent any accumulation of waste.
|
|
| Horizontal Biofilm Carrier Retention Screen Installation | Vertical Biofilm Carrier Retention Screen Installation |
Main Features
* Non-clogging surface .
* Large open area .
* Low pressure drop .
* Hydraulic efficiency .
* High flow rates .
* Mechanical strength .
* Abrasion-resistant .
* Easy cleaning
MBBR Screen Technical Specifications
No. | Model | Diameter (mm) | Length (mm) | Aperture Size (mm) | Wedge Wire Diameter (mm) | Connection Mode | Material |
1 | HS-150 | DN150 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
2 | HS-200 | DN200 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
3 | HS-250 | DN250 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
4 | HS-300 | DN300 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
5 | HS-350 | DN350 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
6 | HS-400 | DN400 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
7 | HS-450 | DN450 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
8 | HS-500 | DN500 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
9 | HS-550 | DN550 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
10 | HS-600 | DN600 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
Applications
BioCell biofilm carrier retention screen connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.
