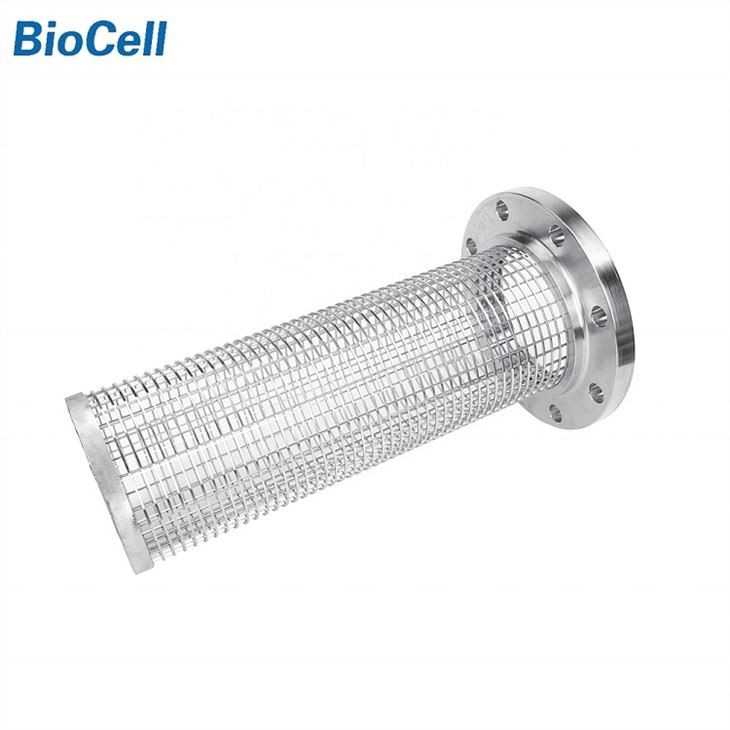

Biofilm Media Retention Screen
The approach of biofilm media retention screen is developing on the basis of engineering practice. Early designs used vertically mounted stainless-steel flat-panel sieves. Now horizontally configured stainless steel wedge wire sieves are usually used in MBBR applications. When placed horizontally, its position and orientation are favorable for the carrier to scrub the sieves and avoid the blockage of the carrier and waste.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Description
The approach of biofilm media retention screen is developing on the basis of engineering practice. Early designs used vertically mounted stainless-steel flat-panel sieves. Now horizontally configured stainless steel wedge wire sieves are usually used in MBBR applications. When placed horizontally, its position and orientation are favorable for the carrier to scrub the sieves and avoid the blockage of the carrier and waste.

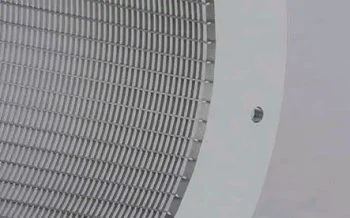

The stainless steel wedge-wire sieve traps the biofilm carrier while allowing the treated wastewater and shed biofilm to flow to the next stage of treatment.
|
|
When vertical-mounted flat-panel sieves are used, an air-sparge system should be mounted along the bottom edge of the panels to periodically pulse the sieves and prevent any accumulation of waste.
|
|
| Horizontal Biofilm Media Retention Screen Installation | Vertical Biofilm Media Retention Screen Installation |
MBBR Screen Technical Specifications
No. | Model | Diameter (mm) | Length (mm) | Aperture Size (mm) | Wedge Wire Diameter (mm) | Connection Mode | Material |
1 | HS-150 | DN150 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
2 | HS-200 | DN200 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
3 | HS-250 | DN250 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
4 | HS-300 | DN300 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
5 | HS-350 | DN350 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
6 | HS-400 | DN400 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
7 | HS-450 | DN450 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
8 | HS-500 | DN500 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
9 | HS-550 | DN550 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
10 | HS-600 | DN600 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
Benefits of BioCell Biofilm Media Retention Screen
* Stronger and more durable due to resistance welding
* Wide range of profile wire is available to suit most systems
* High-precision slot sizes are available to meet your requirements
* Ease of replacement will reduce downtime
* Engineered to your specifications
* Robust for vertical wall applications
* Self-cleaning, when designed to the flow rate required
