Stainless Steel Wide Band Diffuser
This stainless steel wide band diffuser releases 3–5 mm large bubbles for strong mixing and anti-clogging performance. It is widely used in grit chambers, equalization tanks, sludge tanks, and industrial wastewater applications to prevent sedimentation and avoid clogging from fibers or high solids. Simple structure, low maintenance, and corrosion-resistant. Ideal for scenarios requiring strong agitation rather than high oxygen transfer efficiency, especially for high-solids and harsh conditions.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

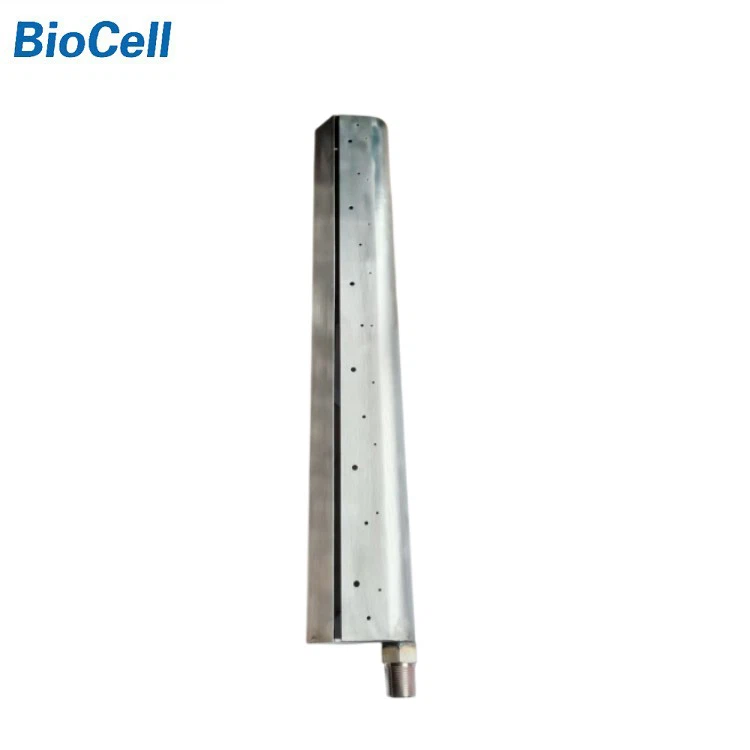

Stainless Steel Wide Band Diffuser: Ultimate Solution for Heavy-Duty Wastewater Aeration
This stainless steel wide band diffuser releases 3–5 mm large bubbles for strong mixing and anti-clogging performance. It is widely used in grit chambers, equalization tanks, sludge tanks, and industrial wastewater applications to prevent sedimentation and avoid clogging from fibers or high solids. Simple structure, low maintenance, and corrosion-resistant. Ideal for scenarios requiring strong agitation rather than high oxygen transfer efficiency, especially for high-solids and harsh conditions.
Our coarse bubble diffuser is made of stainless steel (SUS304 or SUS316L optional). The coarse air bubble diffuser of the aerator provides maximum oxygenation, stirring, and mixing efficiency. The standard length of the diffuser is 600mm. A 600mm long aerator can achieve a release perimeter of 1250mm. The service life is 3-8 years.
Full Specification of Wide Band Diffuser
| Basic Information | |
| Product Name | Stainless Steel Wide Band Diffuser |
| Orifice Size | 3–5 mm |
| Bubble Size | 3–5 mm large bubbles |
| Application | Equalization tank, grit chamber, sludge tank, high-solids wastewater, industrial wastewater mixing |
| Material & Structure | |
| Main Body | SS304 / SS316L / UPVC / PP |
| Hole Type | Punched or laser-drilled |
| Connection | 3/4" BSP / NPT male thread |
| Sealing | Rubber gasket seal |
| Dimensions | |
| Standard Length | 600mm (customizable) |
| Wall Thickness | 1.5–3.0 mm |
| Performance Parameters | |
| Working Pressure | 0.02–0.10 MPa |
| Head Loss | ≤ 2000 Pa |
| Air Flow Rate | 0–80 Nm³/h |
| SOTE | 1.7–2.5% per meter water depth |
| Service Area | 0.5–1.5 ㎡ per tube |
| Suitable Water Depth | 1.5–7.0 m |
| Environmental Resistance | |
| Temperature Range | -10℃ to +60℃ |
| pH Resistance | 4–10 |
| Corrosion Resistance | Good for sewage, brackish water, seawater (316L) |
| Anti-clogging | Excellent |
| Installation & Lifetime | |
| Installation | Fixed bottom installation / liftable type |
| Spacing | 0.5–1.0 m |
| Service Life | 3–8 years |
| Maintenance | Almost maintenance-free |
Core Advantages of BioCell Wide Band Diffuser

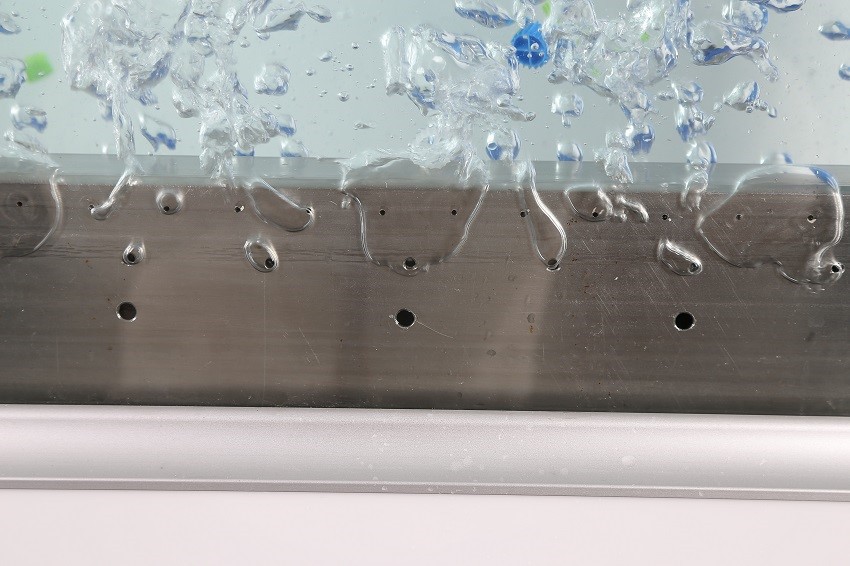

√ Strong Mixing: Rapidly rising large bubbles keep solids suspended and prevent tank bottom sedimentation.
√ Anti-Clogging: Large orifices resist blockage from fibers, sediment, and high-solids sludge.
√ Low Maintenance: Simple structure ensures long-term reliable operation with minimal upkeep.
√ Corrosion Resistance: Stainless steel construction is suitable for industrial wastewater and marine environments.
Key Applications areas
• Sewage Treatment: Grit chambers, equalization tanks, and aerobic digestion tanks to prevent sedimentation, pre-aerate wastewater, and stabilize sludge.
• Industrial Use: Industrial wastewater mixing tanks, chemical mixing vessels, and high-solids sludge processing.
• Emergency & Auxiliary Use: Quick deployment for temporary aeration, and bottom mixing in aquaculture ponds to prevent debris buildup.
As a leading global stainless steel wide band diffuser supplier, BioCell guarantees the quality and performance of every unit. Choose our coarse bubble diffuser for wastewater and invest in a future-proof aeration system.
