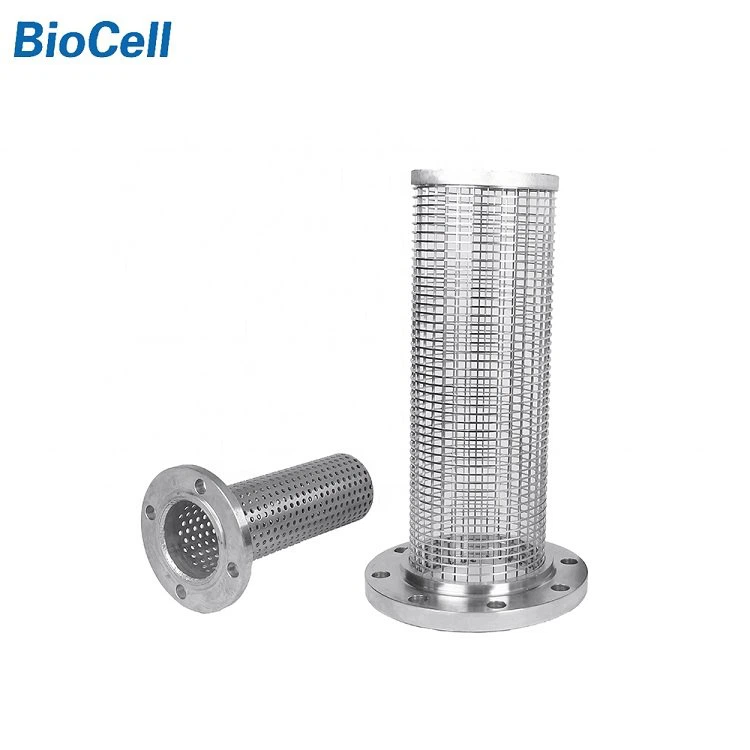

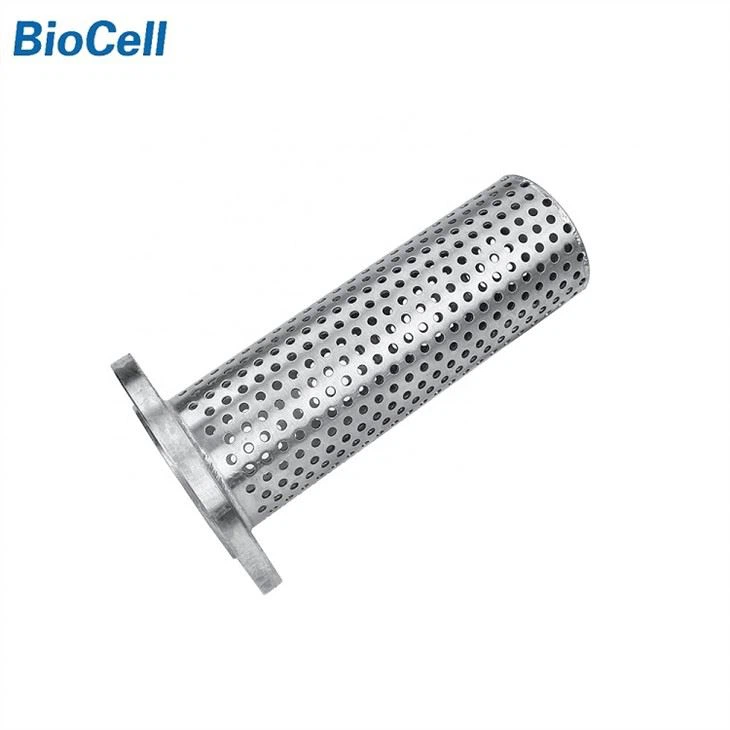

316 Stainless Steel Wedge Wire Screen Pipe
The approach of 316 stainless steel wedge wire screen pipe is developing on the basis of engineering practice. Early designs used vertically mounted stainless-steel flat-panel sieves. Now horizontally configured stainless-steelwedge-wiresieves are usually used inMBBR applications.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Description
The approach of 316 stainless steel wedge wire screen pipe is developing on the basis of engineering practice. Early designs used vertically mounted stainless-steel flat-panel sieves. Now horizontally configured stainless-steelwedge-wiresieves are usually used in MBBR applications.
|
|

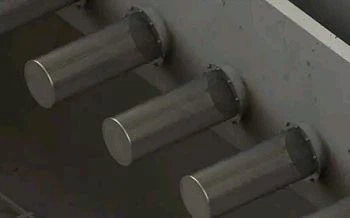

The 316 stainless steel wedge wire screen pipe traps the biofilm carrier while allowing the treated wastewater and shed biofilm to flow to the next stage of treatment.

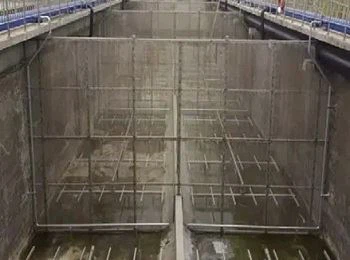

When vertical-mounted flat-panel sieves are used, an air-sparge system should be mounted along the bottom edge of the panels to periodically pulse the sieves and prevent any accumulation of waste.
|
|

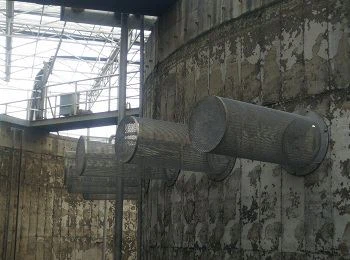

| Horizontal Sieve Installation | Vertical Sieve Installation |
Features and Benefits
* Easy leakage, wear resistance, corrosion resistance.
* The screen is uniform, the welding is stable, high hole rate, long service life.
* High strength, stiffness and bearing capacity of rigid, screening filter device can be made into various shapes.

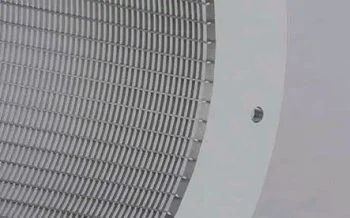

* Precision workmanship and gap size, extended life span, capability of self-cleaning and low pressure drop.
Technical Specifications
No. | Model | Diameter (mm) | Length (mm) | Aperture Size (mm) | Wedge wire diameter (mm) | Connection Mode | Material |
1 | HS-150 | DN150 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
2 | HS-200 | DN200 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
3 | HS-250 | DN250 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
4 | HS-300 | DN300 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
5 | HS-350 | DN350 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
6 | HS-400 | DN400 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
7 | HS-450 | DN450 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
8 | HS-500 | DN500 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
9 | HS-550 | DN550 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
10 | HS-600 | DN600 | 200~4000 | 5~12 | 2~3 | Flange | SS304/316/316L |
