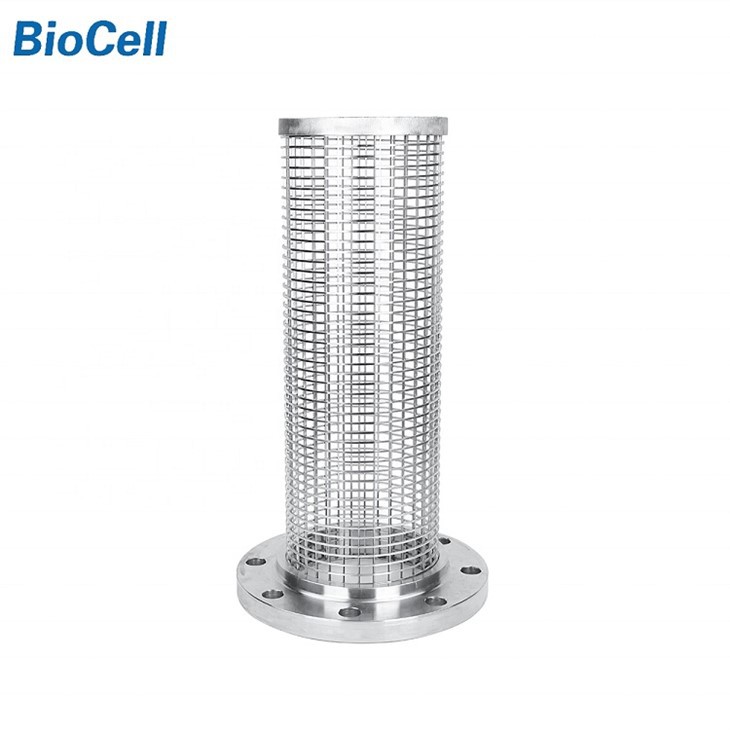

Wedge Wire Screen Cylinder
BioCell stainless steel wedge wire screen cylinder manufacturers can design, manufacture, and market all wedge wire cylinders for water treatment and industrial applications. Its basic structure is a welded or ring-shaped plate made of stainless steel or other alloys. Wedge-shaped wires are resistance-welded to the support material to form a V-shaped surface. The distance between the surface grooves is precisely controlled, allowing the formed filtrate to flow through the V-shaped grooves and ensuring that the precisely sized grooves can trap the required particles. The wedge wire screen cylinder is ideal for solid-liquid separation, media retention, filtration, screening, dewatering, collection, and distribution. This makes wedge wire mesh the best choice for water treatment and processing applications.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

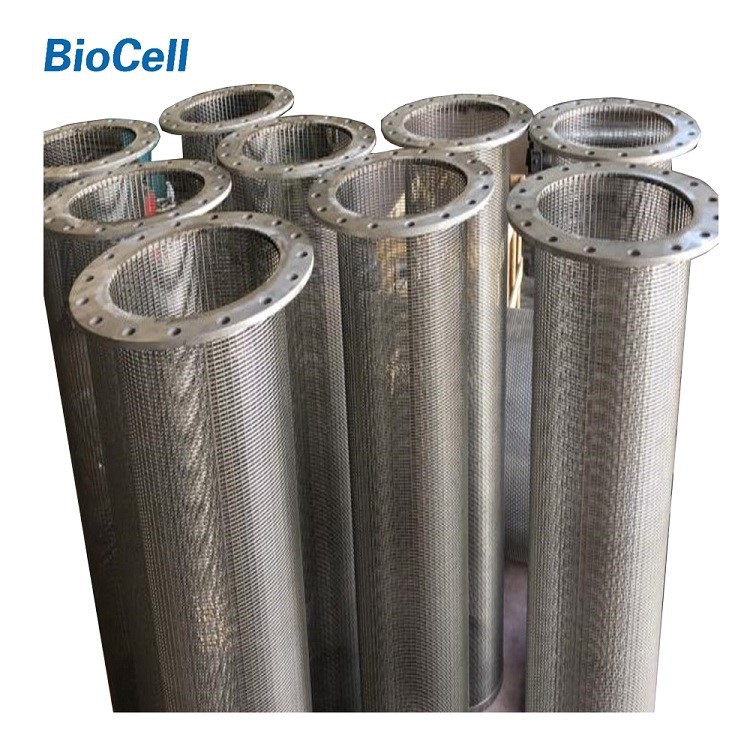

Stainless Steel Wedge Wire Screen Cylinder: The Self-Cleaning Filter for Water Treatment Industries
BioCell stainless steel wedge wire screen cylinder manufacturers can design, manufacture, and market all wedge wire cylinders for water treatment and industrial applications. Its basic structure is a welded or ring-shaped plate made of stainless steel or other alloys. Wedge-shaped wires are resistance-welded to the support material to form a V-shaped surface. The distance between the surface grooves is precisely controlled, allowing the formed filtrate to flow through the V-shaped grooves and ensuring that the precisely sized grooves can trap the required particles. The wedge wire screen cylinder is ideal for solid-liquid separation, media retention, filtration, screening, dewatering, collection, and distribution. This makes wedge wire mesh the best choice for water treatment and processing applications.
Engineered for maximum open area, exceptional strength, and superior clogging resistance, our stainless steel wedge wire screen cylinder is the industry-preferred solution for critical filtration and separation tasks in oil & gas, water treatment, mining, and chemical processing. Unlike traditional mesh filters, its unique V-shaped profile delivers unmatched performance in high-solids, high-pressure, and corrosive environments.
Key Technical Specifications
| Material | SS304, SS316/316L, Duplex 2205, Inconel (custom alloys available) |
| Filtration Slot Width | 0.05mm – 10mm (customized according to actual filtration requirements) |
| Cylinder Diameter | Φ25mm – Φ1000mm (custom sizes available) |
| Cylinder Length | 100mm to 6000mm (Customized according to equipment and installation size) |
| Wedge Wire Profile | V-shaped (typically 0.5mm to 3.0mm thick) |
| Support Rods | Round or profiled, spaced for optimal strength and flow |
| End Connections | Plain end, flange connection, threaded connection, quick connector, etc. |
| Open Area | Up to 60% (significantly higher than mesh screens) |
| Operating Pressure | Up to 100 bar (design-dependent) |
| Operating Temperature | -20℃ – 200℃ (determined by selected material) |
Core Features & Advantages
BioCell stainless steel wedge wire screen cylinders are designed for fine filtration, custom fit, and reliable performance in different filtration systems.
• High Filtration Precision: Capable of manufacturing precision slot openings as small as 20 μm for fine filtration.
• Customizable Configuration: Slot size, length, diameter, connection details, and end configurations can all be customized to match different filtration systems and installation requirements.
• Stable Flow Rate Performance: The wedge wire-shaped filament structure helps maintain effective filtration while reducing unnecessary flow resistance.
• Reusable construction: Durable materials and welded structure support repeated cleaning and have a long service life.
• Easy Maintenance: Cleaning, replacing, and backwashing the filter cartridges are more convenient, helping to reduce downtime and maintenance costs.
Ideal Applications
BioCell stainless steel wedge wire screen cylinders are trusted worldwide in the most challenging separation processes:
• Oil & Gas: Well screens, sand control, desanders, desilters, and downhole safety valves.
• Water & Wastewater Treatment: Pre-filtration for RO systems, MBBR media retention, intake screens, and sludge dewatering.
• Mining & Minerals: Hydrocyclone inserts, sieve bends, centrifuge baskets, and tailings management.
• Chemical & Petrochemical: Catalyst retention, reactor internals, and process fluid filtration.
• Food & Beverage: Sugar syrup filtration, starch recovery, and juice clarification (using food-grade SS316L).
• Power Generation: Condenser tube cleaning brushes and cooling water filtration.
Our engineers can design a wedge wire screen cylinder to your exact specifications-material, dimensions, slot size, and end connections.
Request a Free Engineering Consultation & Quote
We provide CAD drawings and material certifications with every order.
As a leading global manufacturer of precision filtration products, BioCell guarantees the quality and performance of every wedge wire filter we produce. Choose our self-cleaning screen technology for a reliable, long-lasting solution that keeps your operations running smoothly.
